S Series (Ø100-125)
Copied to clipboard
S100U
Max.90dB
- Product Feature
نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 90dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø100(Approx.) │Height : 152
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP44
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

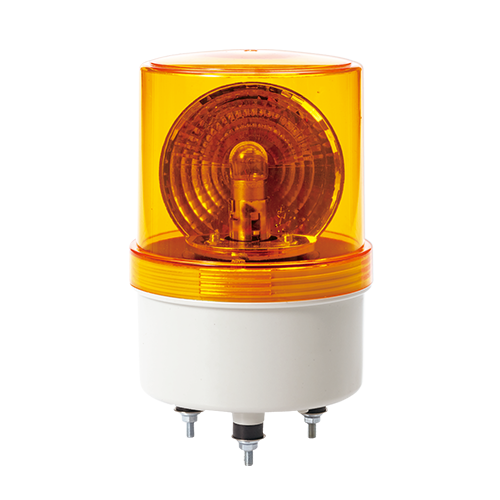

Product Feature- Ø100mm general-purpose bulb revolving signal light
- Adopts a special power transmission system that reduces noise and wear
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Revolving speed : 120-140RPM
- Material : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP44
Product Specifications
| Model number | Voltage | Current | Bulb | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S100U | DC12V | 965mA | 12V10W | T16x35 15S | 9 | | 0.36kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 565mA | 24V10W | T16x35 15S | 10 | 0.36kg | |||
| AC110V | 130mA | 12V10W | T16x35 15S | 9 | 0.59kg | |||
| AC220V | 65mA | 12V10W | T16x35 15S | 9 | 0.59kg | |||
ㆍProtection rating: IP44
