S Series for vehicle
Copied to clipboard
S100MLR
LED Revolving Warning Light for Vehicle
Max.90dB
- Product Feature
نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 90dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V,24V
- Dimension
Lens Diameter : │Ø100(Approx.) │Height : 149
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP54
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

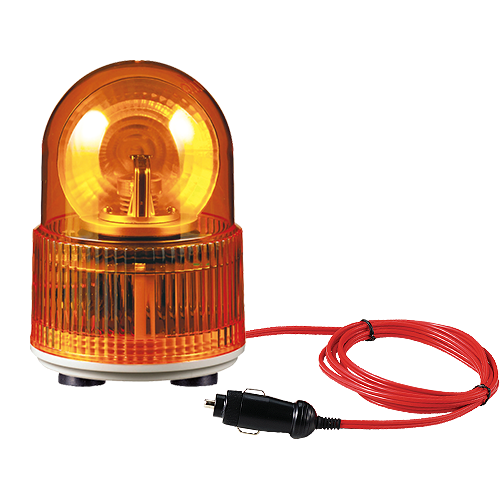

Product Feature- Ø100mm general purpose LED revolving warning light
- Shock and vibration-resistant from vehicle operation with long-lasting LED
- Three powerful magnets provide strong adhesion to the vehicle
- Power is supplied through the cigarette lighter plug
- Excellent omni-directional visibility with LED light collecting system and special multifaceted reflector
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Revolving speed : 120-140RPM
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP54
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S100MLR | DC12V | 180mA | - | 0.37kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 125mA | 0.37kg |
ㆍThree Powerful magnets provide strong adhesion to the vehicle
ㆍPower is supplied through the cigarette lighter plug
ㆍShock and vibration-resistant from vehicle operation with long-lasting LED
ㆍExcellent omni-directional visibility with LED light collecting system and special multifaceted reflector
ㆍProtection rating: IP54
