S Series (Ø100-125)
Copied to clipboard
S100LR
Max.90dB
- Product Feature
نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 90dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø100(Approx.) │Height : 152
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

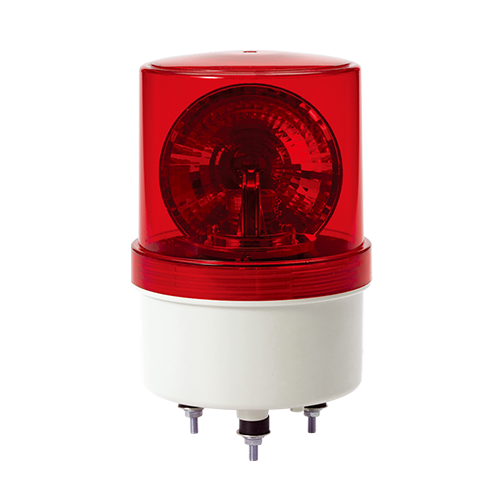

Product Feature- Ø100mm general purpose LED revolving warning light
- Excellent omni-directional visibility with LED light collecting system and special multifaceted reflector
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Revolving speed : 120-140RPM
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP44
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S100LR | DC12V | 180mA | - | 0.39kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 125mA | 0.39kg | |||
| AC110V | 35mA | 0.47kg | |||
| AC220V | 20mA | 0.47kg |
ㆍProtection rating: IP44
