S Series (Ø100-125)
Copied to clipboard

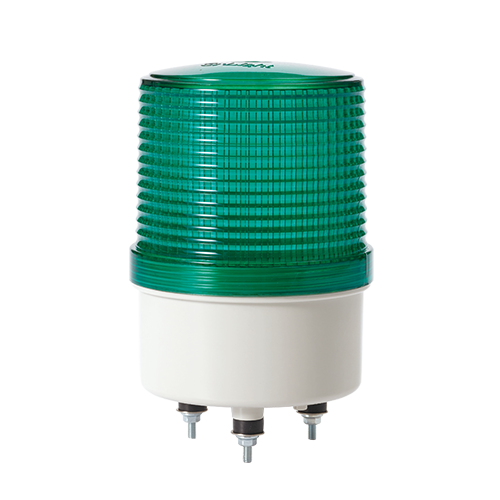

S100L
LED Steady/Flashing Signal Light
Max.90dB
- Product Feature
نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 90dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø101(Approx.) │Height : 152
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP44
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø100mm multi-purpose LED steady/flashing signal light
- Shock and vibration-resistant and easy maintenance with long-lasting LED
- Built-in switch for selection between steady and flashing mode
- Material : Lens - AS, Housing - ABS, Reflector - Heat resistant ABS
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP44
- Certificates : CE Compliant
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S100L | DC12V-24V | Max.185mA | | 0.26kg |  R-Red A-Amber G-Green B-Blue |
| AC110V | 55mA | 0.45kg | |||
| AC220V | 30mA | 0.45kg |
※ CE Compliant: DC12V-24V
