QWTD Series
Copied to clipboard

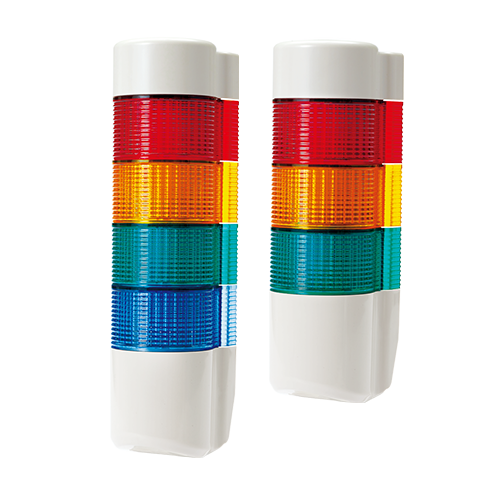

QWTD
LED Signal Tower with Built-in Siren
Max.85dB
- Product Feature
20 صوتًا مُدمجًا (Max. 85dB at 1m)
- Voltage
DC:12V,24V│AC:12V,24V,110V-220V
- Dimension
Diameter : Ø70mm │Height : 154-318 │Depth : 76
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Wall mount model that minimizes the chance of damage from moving obstacles or personnel
- 5 selectable sound pattern combinations(5 warning sounds, 5 special warning sounds, 5 melodies, 5 alarms)
- Selectable between steady/flashing mode with proper wire arrangement
- Standard color arrangements
1 Layer :
R-Red
2 Layers : R-Red
G-Green
3 Layers : R-Red
A-Amber G-Green
4 Layers : R-Red A-Amber G-Green
B-Blue
5 Layers : R-Red A-Amber G-Green B-Blue
W-White - Available for customized color arrangements
- Built-in siren sound volume (Max. 85dB at 1m)
- Materials : Lens-PC, Cover-ABS, Case-ABS
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP54
- Certificates : CE Compliant
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Sound pattern and volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| QWTDL Steady QWTDLF Steady/ Flashing | 1 | AC/DC12V | • WS-5 warning sounds • WP-5 special warning sounds • WM-5 melodies • WA-5 alarms • Built-in volume : Max.85dB at 1m | | 0.14kg | R-Red |
| AC/DC24V | 0.14kg | |||||
| AC110V-220V | 0.27kg | |||||
| 2 | AC/DC12V | 0.18kg | R-Red G-Green | |||
| AC/DC24V | 0.18kg | |||||
| AC110V-220V | 0.32kg | |||||
| 3 | AC/DC12V | 0.23kg | R-Red A-Amber G-Green | |||
| AC/DC24V | 0.23kg | |||||
| AC110V-220V | 0.36kg | |||||
| 4 | AC/DC12V | 0.27kg | R-Red A-Amber G-Green B-Blue | |||
| AC/DC24V | 0.27kg | |||||
| AC110V-220V | 0.41kg | |||||
| 5 | AC/DC12V | 0.32kg | R-Red A-Amber G-Green B-Blue W-White | |||
| AC/DC24V | 0.32kg | |||||
| AC110V-220V | 0.45kg |
※ Max.built-in volume feature is based on WS-Ch1.
※ AC type model has a free-voltage range of 100V-240V.
※ CE compliant: DC12V, DC24V
※ Please refer to [Sound tone and combination for standard product] on this catalogue for detailed sound tone specification.
Light source current(based on 1 layer)
Voltage | DC12V | DC24V | AC110V-220V |
|---|---|---|---|
Light source current(1 layer) | 105mA | 80mA | Max.35mA |
| Signal sound current | 200mA | 140mA | Max.60mA |
