QWH/QWCD Series
Copied to clipboard

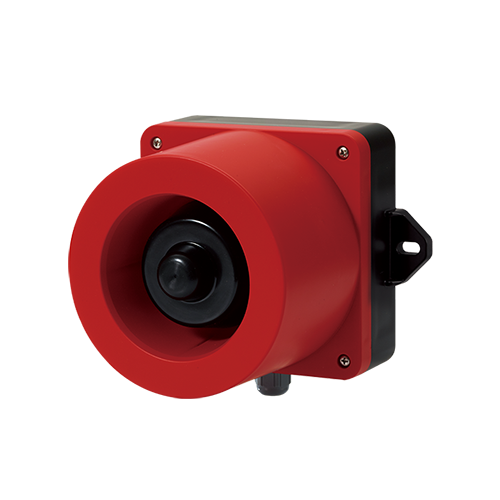

QWH50
Weatherproof Alarm Horns & Sirens / Audible Alarm Max.123dB
- Product Feature
31 صوتًا مُدمجًا (Max.123dB at 1m), 30 صوتًا محددًا بواسطة المُستخدم بتنسيق MP3 (Max.115dB at 1m)
- Voltage
DC:12V-24V│AC:110V-220V
- Dimension
Ø168×222 │Depth : 163
- Materials
البوق-PC+ABS │المبيت-PC+ABS
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Signal fit for the specific environment and condition
- Options to select between 31 special warning sounds included in the pre-recorded sound type and SDcard(MP3) type
- Volume adjustment and sound selection switches located inside the unit. SDcard in the unit offers convenient operation
- SDcard type allows the user to input the proper voice messages for specific operating conditions
- The SDcard type 31 Special alarms built in which includes the voice alert from the SDcard (MP3). 31 special warning sounds are built both in pre-recorded sound type and SDcard type
- Offers both Binary and Bit input mode options (only the SDcard type has the bit input)
- Tightly sealed structure that blocks water and dust with IP66 protection rating suitable for outdoor installation
- Can be used in extreme environmental conditions such as the arctic where temperatures can reach -50°C
- Cable entry: PG 13.5
- Ambient operating temperature :
-30°C to +50°C(Standard)
-50°C to +50°C(Low temperature type only DC)
-20°C to +50°C(SD Card type) - Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Certificates | Weight |
|---|---|---|---|---|---|
| QWH50 | DC12V-24V | Max.3.6A | • Bit Input : 5Ch(SD Card) • Binary Input : 31Ch • Warning sounds : Max.123dB(Based on Ch16) • MP3 : Max.115dB | | 2.7kg |
| AC110V-220V | Max.730mA | ||||
| QWH50SD | DC12V-24V | Max.3.6A | 2.8kg | ||
| AC110V-220V | Max.730mA |
※ DC type model has a free-voltage range of 10V-30V.
※ AC type model has a free-voltage range of 100V-240V.
※ UL Listed: DC12V-24V
※ When playing MP3 files, there may be difference of volume depending on user’s audio file type.
Sound Tone Combination of Standard Product
| No. | Sound Category | Sound |
|---|---|---|
| 01 | Rel rel rel | |
| 02 | Slow Ambulance PI-PO | |
| 03 | Oit Oit warning sound | |
| 04 | Emergency(Siren) | |
| 05 | Pi- buzzer | |
| 06 | 7 Short PI. / 1 Long | |
| 07 | Pi o Pi o | |
| 08 | Phone Ring | |
| 09 | Pi- buzzer | |
| 10 | Pi pi pi short | |
| 11 | Di o Di o 2 tones buzzer | |
| 12 | Oit Oit warning sound | |
| 13 | Slow Ambulance PI-PO | |
| 14 | Slow Di o Di o | |
| 15 | Fast Li o li o | |
| 16 | Fire.A-ANG |
| No. | Sound Category | Sound |
|---|---|---|
| 17 | Fast Ambulance PI-PO | |
| 18 | Slow Ambulance PI-PO | |
| 19 | Ri ro ri ro warning sound | |
| 20 | Repeat Di-o 3 times | |
| 21 | Fire.A-ANG | |
| 22 | Ambulance PI-PO | |
| 23 | Slow Fire.A-ANG | |
| 24 | Pi-pi- buzzer low frequency | |
| 25 | Pi-pi- buzzer high frequency | |
| 26 | Di-di- buzzer high frequency | |
| 27 | Di-di- buzzer low frequency | |
| 28 | Rising Po-ong | |
| 29 | Fast Ambulance PI-PO | |
| 30 | Rising frequency | |
| 31 | Repeat A-ANG |
