بدأ الهاتف جهاز إرسال الاشارة.
Copied to clipboard

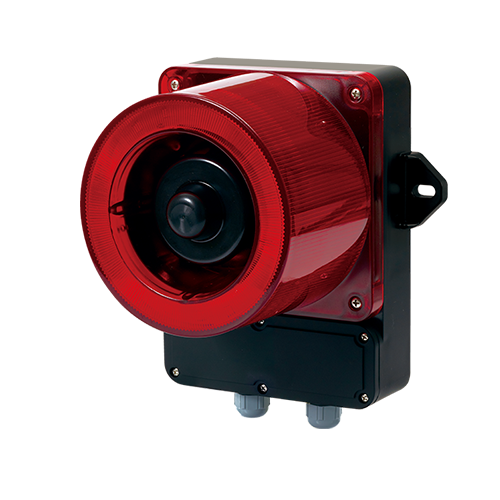

QWCD50-TI
- Product Feature
31 Built-in Sounds (Max.123dB at 1m)
- Voltage
DC:12V-24V│AC:110V-220V
- Dimension
□168×228.5 │Depth : 163
- Materials
Horn-PC │Housing-PC+ABS
- Protection rating
IP66
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Telephone initiated signaling device that activates a built-in sounder which is triggered by 25Hz Telephone Ring Signal
- Telephone line(2 line) is connected to PSTN cable
- 31 available tones that can be selected for a variety of environments
- 31 pre-recorded tones available via binary input
- Suitable for use in environments that require a tight seal and superior dust protection rated IP66
- Easy wiring though external terminal box
- Rated power when telephone lines are not in use: 45VDC - 55VDC
- Rated power when telephone rings : 95VDC - 130VDC
- Flashing rate : 60-80 flashes/min
- Materials : Horn-PC, Housing-PC+ABS
- Ambient operating temperature :
-30°C to +50°C(Standard)
-50°C to +50°C(Low temperature type only DC) - Protection Rating : IP66
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Weight | Color |
|---|---|---|---|---|---|
| QWCD50-TI Terminal box equipped type Built-in standard sound | DC12V-24V | Max.4.65A | • Binary Input : 31Ch • Warning Sounds : Max.123dB (Based on Ch16) | 3.10kg |  R-Red A-Amber G-Green B-Blue |
| AC110V-220V | Max.900mA | 3.40kg |
