SMART FACTORY
WIRELESS
QTG70ML-WIZ
QTG70ML-WIZ

QTG-WIZ Series Copied to clipboard

QTG70ML-WIZ

Ø70mm Wireless LED Steady/ Flashing Tower Light
Max.85dB
IP54IP65-30℃ ~ +50℃Buzzer85dBNPN-Transistor TypeRoHSUsing Wireless
  • Product Feature

    Buzzer volume controllable type (Max.85dB at 1m) : optionally available

  • Voltage

    DC:12V,24VAC:110V-220V

  • Dimension

    Diameter : Ø70 Height : 199-399

  • Materials

    Lens-PC Housing-ABS

  • Protection rating

    IP54 (Buzzer type)IP65 (Standard)

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download
  • Accessories

Product Feature

Features

  • Ideal solution for building smart factories with state of the art technology

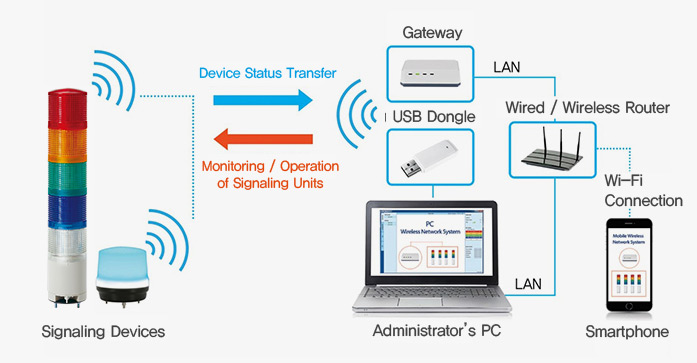

  • Wireless monitoring and control of signal tower light via PC or smartphone
  • WIZ series can integrate mismatch among old machineries, latest equipment and various brands


Main characteristics

  • Possible to control the product via external communication and PC application software
  • The product transfers visual and audible warning signals as well as data being monitored remotely by means of wireless communication.
  • Productivity and failure rate management for each machine
  • Cost effective solution for an advanced manufacturing network system
  • Mesh topology uses 2.4GHz local wireless telecommunication to enable stable communication even under the harsh environmental conditions.
  • The multi-hop feature allows for long distance communication up-to 10 HOP (100 meter between the units).
  • Production equipment relocation would be convenient because the wireless network system does not require a telecommunication cable.
  • 5 built-in buzzer tones are available.
  • Compliant with RoHS directive


Operational environment

  • OS Support: Windows 10
  • Library Support: C#(64bit only)
  • Wireless communication protocol : Zigbee(IEEE802.15.4)
  • 2.4GHz radio communication available


  • Product Feature
  • Product Specifications
  • Download
  • Accessories

Product Specifications

Model numberLayerVoltageCertificatesWeightColor
QTG70ML-WIZ
Steady
QTG70ML-WIZ-BZ
Steady /w built-in buzzer
QTG70MLF-WIZ
Steady/Flashing
QTG70MLF-WIZ-BZ
Steady/Flashing
/w built-in buzzer

QTGA70ML-WIZ
Steady
QTGA70ML-WIZ-BZ
Steady /w built-in buzzer
QTGA70MLF-WIZ
Steady/Flashing
QTGA70MLF-WIZ-BZ
Steady/Flashing
/w built-in buzzer
1DC12V
DC24V
AC110V-220V




0.38kg
0.38kg
0.41kg
 R-Red
2DC12V
DC24V
AC110V-220V
0.44kg
0.44kg
0.47kg
 R-Red
G-Green
3DC12V
DC24V
AC110V-220V
0.50kg
0.50kg
0.53kg
 R-Red
A-Amber
G-Green
4DC12V
DC24V
AC110V-220V
0.56kg
0.56kg
0.59kg
 R-Red
A-Amber
G-Green
 B-Blue
5DC12V
DC24V
AC110V-220V
0.62kg
0.62kg
0.65kg
 R-Red
A-Amber
G-Green
 B-Blue
 W-White

※ AC type model has a free-voltage range of 100V-240V

※ KC Certification: DC24V, CE RED compliant: DC24V, AC110V-220V, FCC Complaint: DC24V, AC110V-220V




Light source/buzzer current(based on 1 layer)


Voltage
DC12V
DC24V
AC110V-220V
Light source current(1 layer)
130mA
85mA
Max.65mA
Buzzer current
35mA30mAMax.40mA

  • Product Feature
  • Product Specifications
  • Download
  • Accessories

  • Product Feature
  • Product Specifications
  • Download
  • Accessories

Accessories

  • TWA80
    TWA80
  • TWS80
    TWS80

※ Please refer to technical information page for detailed specification including measurement.
