QTG/QTGA Series
Copied to clipboard
QTG50L/QTGA50L

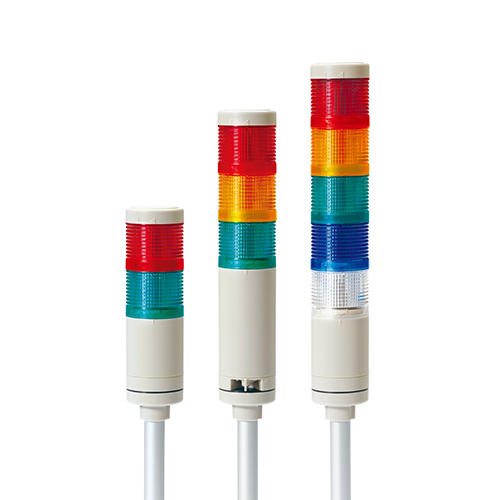

LED Steady/Flashing Tower Lights
Max.85dB
- Product Feature
نوع جهاز الإنذار الذي يمكن التحكم في مستوى صوته (Max. 85dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
Diameter : Ø50mm │Height : │344-592
- Materials
العدسات-PC │المبيت-ABS │Pole-Al
- Protection rating
IP65 (Standard)│IP54 (Buzzer type)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Modular steady/flashing type signal tower lights
- Excellent visibility from a distance with the use of a special color diffusing lens
- The addition of modules and change in color arrangement can be achieved without the use of tools by using the Lock-type structure
- QTGA type offers a nifty integrated lens and cover for a simple aesthetically pleasing product
- A variety of mounting bracket selections for the pole mount type to fit your location and mounting needs
- Buzzer sound output : Sound volume of Max. 85dB at 1m
- Available in 2 customized options; sounds buzzer type and high volume(100dB) buzzer type
- Can be used with NPN open collector transistor driven input, which allows direct connection to a PLC
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
- Protection rating : Standard type-IP65, Built-in buzzer type-IP54
- Pre-wired is standard. Can customize the product with the M12 connector if requested
- 24VDC UL listed model is optionally provided
- Certificatess : CE Compliant, UL Listed
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QTG50L Steady QTG50L-BZ Steady /w built-in buzzer QTG50LF Steady/Flashing QTG50LF-BZ Steady/Flashing /w built-in buzzer QTGA50L Steady QTGA50L-BZ Steady /w built-in buzzer QTGA50LF Steady/Flashing QTGA50LF-BZ Steady/Flashing /w built-in buzzer | 1 | DC12V DC24V AC110V~220V | | 0.34kg 0.34kg 0.44kg |  R-Red |
| 2 | DC12V DC24V AC110V-220V | 0.43kg 0.43kg 0.53kg | R-Red G-Green | ||
| 3 | DC12V DC24V AC110V-220V | 0.51kg 0.51kg 0.61kg | R-Red A-Amber G-Green | ||
| 4 | DC12V DC24V AC110V-220V | 0.60kg 0.60kg 0.70kg | R-Red A-Amber G-Green B-Blue | ||
| 5 | DC12V DC24V AC110V-220V | 0.68kg 0.68kg 0.78kg | R-Red A-Amber G-Green B-Blue W-White |
※ AC type model has a free-voltage range of 100V-240V.
※ UL Listed: DC24V
Light source/buzzer current(based on 1 layer)
Voltage | DC12V | DC24V | AC110V~220V |
|---|---|---|---|
Light source current(1 layer) | 90mA | 70mA | Max.55mA |
| Buzzer current | 40mA | 75mA | Max.55mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
|
| 2 Buzzer Sounds (Customized type) |
Pi--- Pi--- moderate Pi pi pi short |
