SPK/QMPS Series
Copied to clipboard
QMPS
Max.95dB
- Product Feature
30 صوتًا مُدمجًا (Max. 98dB at 1m), 30 صوتًا محددًا بواسطة المُستخدم بتنسيق MP3 (Max. 95dB at 1m)
- Voltage
DC:12V-24V│AC:110V-220V
- Dimension
□120×120mm │Depth : 69
- Materials
ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Can prevent cross talk of different voice environments by selecting an audio signal fit for the specific environment and condition
- Offers both Binary and Bit input mode options with 30 pre-recorded sounds
- Binary input mode has built-in 30 messages that can be played with switch for sound selection
- Bit input mode is organized into 6 groups of 5 sound tones for a total of 30 sound tone options. Playback can be selected from one of the 5 tones in each group (MP3 file with bit input mode)

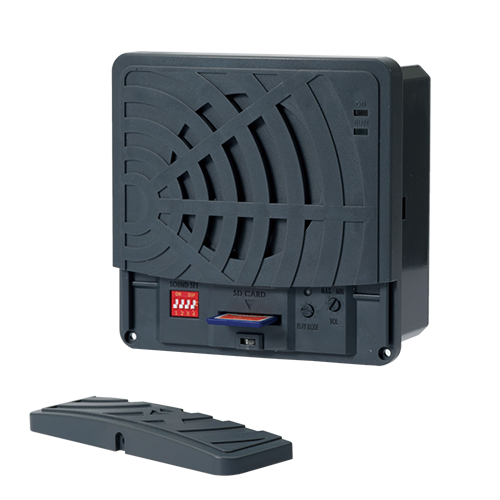

- Volume adjustment and sound selection switches located inside the unit
- SDcard type can play MP3 voice messages, user can select and change the sound message after record it
- Sound volume : Max. 98dB at 1m
- Materials : Housing-ABS, Cover-ABS
- Ambient operating temperature : -25°C to +50°C
- Protection rating : IP54
- Certificates : CE Compliant, UL Listed
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Volume | Input Method /No.of Ch | Certificates | Weight |
|---|---|---|---|---|---|---|
| QMPS SD card | DC12V-24V | Max.570mA | • SD card • Warning sounds : Max.95dB(Based on Ch17) • MP3 : Max.90dB | Bit Input : 5Ch Binary Input : 30Ch | | 0.35kg |
| AC110V-220V | Max.115mA | 0.53kg |
※ When playing MP3 files, there may be difference of volume depending on user’s audio file type.
※ DC type model has a free-voltage range of 10V-30V.
※ AC type model has a free-voltage range of 100V-240V.
※ CE compliant: DC12V-24V, UL Listed: DC12V-24V
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Special Warning Sounds (2nd Group) | Rel rel rel Slow Ambulance PI-PO Wye yong Wye yong Phone ring 2 Fire.A-ANG |
||
| 5 Special Warning Sounds (3nd Group) | Oit Oit Pi o Pi o Slow Di o Di o Li long Li ling 911 Siren |
