QML Series
Copied to clipboard

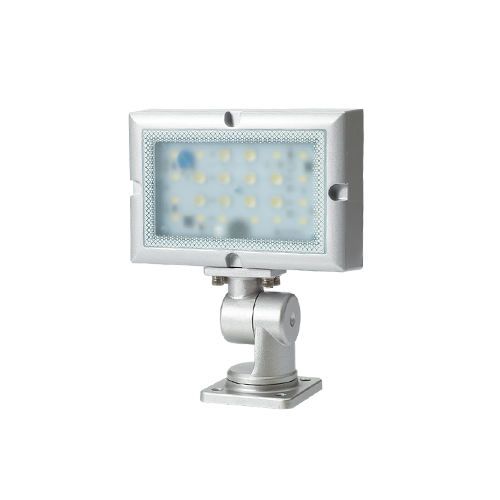

QML-150-MF
- Product Feature
الإضاءة(at 1m) : 700Lux
- Voltage
DC:24V
- Dimension
155(W)×191(L)×66(H)
- Materials
Housing : Al │Lens : Tempered glass │Bracket : K Type-STS430/MF Type-Al
- Protection rating
IP67/IP69K
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Excellent oil resistance with a special sealing structure with IP67 protection rating, suitable for machine tool applications with cutting fluids
- Suitable for high pressure and high temperature water cleaning nvironments(IP69K)
- Tempered glass prevents damage from machine tool chips
- Flat glass bonding structure
- No external substances on the glass despite of long term use
- Can select between QML model (Anti-glare type) and QMHL model (High luminance type) depending on your work conditions
- Can select from a variety of bracket options from direct mount, tilt mount, and pan/ tilt mount type to fit your work environment or lighting condition needs
- Wired type and M12 connector type allow for a customized model that M12
connector can be attached at the end of wires.
Customized oil resistant cable attached type available
Product Specifications
| Optics Specifications | |
|---|---|
| Model number | QML-150-MF |
| Directions | Translucent |
| Light color | Cooldaylight |
| Color temperature | 6,000~7,000K |
| Luminous flux | 850lm |
| Illumination(at 1m) | 700Lux |
| Specifications | |
| Model number | QML-150-MF |
| Voltage | DC24V |
| Range for operation voltage | DC21.5V-26.5V |
| Power consumption | 15W |
| Insulation resistance | Min. 100MΩ(500V DC mega ohm meter) |
| Withstanding voltage | DC: 500VAC, 60Hz, 1minute |
| Operating temperature | -30℃ to +60℃ |
| Protection rating | IP67/IP69K |
| Materials | Housing-Al, Lens-Tempered glass, Bracket-K Type-STS430/MF Type-Al |
| Certification | |
| Weight(Approx.) | 1.09kg |
※ UL Listed: QML Series only
