QMCL Series
Copied to clipboard
QMCL125

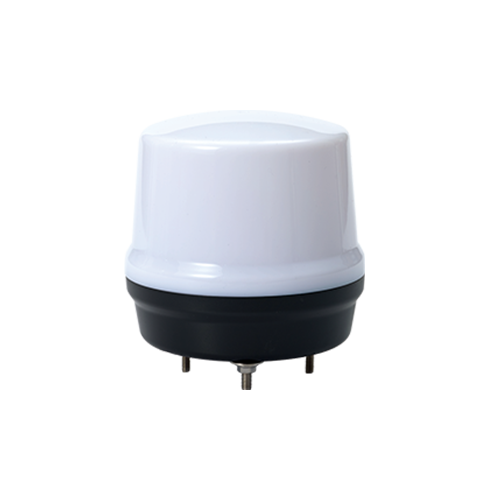

LED Steady Signal Light
Max.80dB
- Product Feature
نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max.80dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V,24V
- Dimension
Lens Diameter : │Ø125(Approx.) │Height : 110
- Materials
العدسات-PC │المبيت-ABS
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Helps reduce the costs of installation by reducing the space needed to emit seven color signals in a single warning light

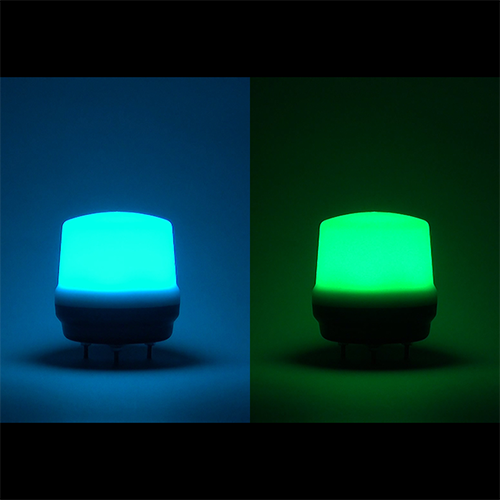

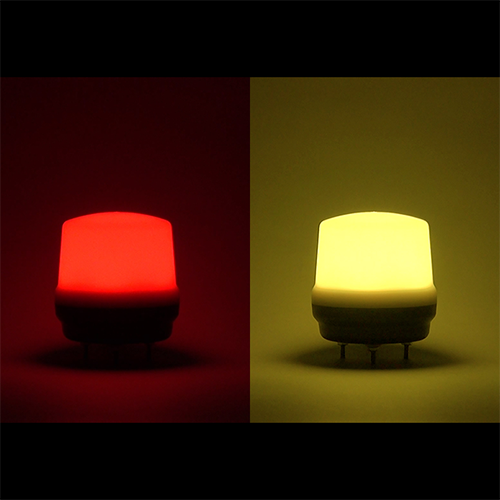

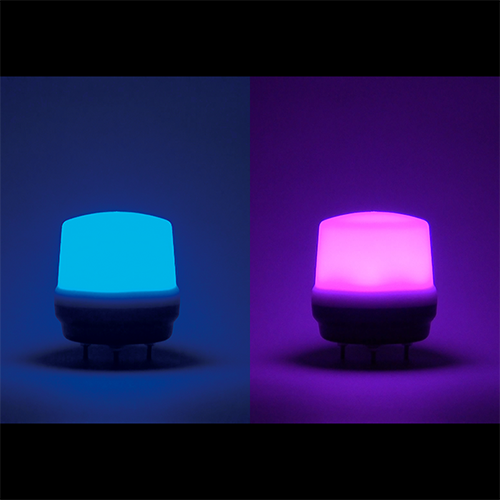

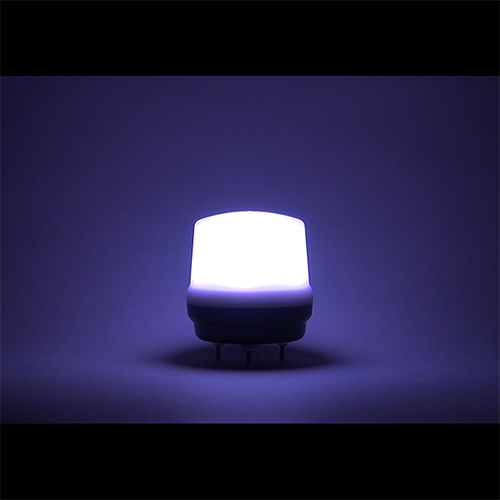

- Milky translucent color when off, the soft LED illuminates designated colors when on
- Ambient operating temperature : -30°C to +50°C
- M12 connector type is optionally available(Female M12 connector is not provided)
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QMCL125 | DC12V | 235mA | | 0.31kg | 7 Colors |
| DC24V | 190mA | 0.31kg |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
