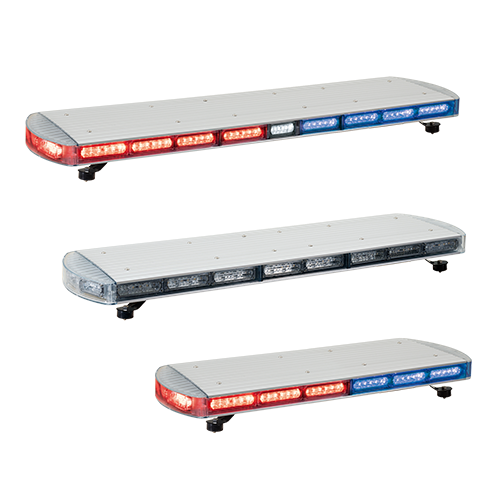

QLV Series
Copied to clipboard
QLV
- Voltage
DC:12V
- Dimension
□300×64 │Height : 129 │Length : 885-1250
- Materials
العدسات-PC │الغطاء-Al │اللوحة-Al
- Protection rating
IP56
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Compact and aerodynamic design minimizes air resistance in high speed vehicles
Transparent polycarbonate outer and inner lens provides clear signal light transmission
Strong mechanical strength, heat, and UV light resistance
Excellent protection from vibration and impact with use of aluminum boards for both the top and bottom plates
Internal heat discharges naturally because each LED module adopts an excellent heat dissipative structure
QLV-SET includes amplifier that has a built-in one-touch switch for selection between signal sound and warning light
QLV-SET includes a 100W high volume horn with clear warning sounds
1,250mm, 1,150mm and 885mm length models are also available
Available in customized color arrangements
- Ambient operating temperature : -30°C to +50°C
- Flashing rate : 60-80 flashes/min
Product Specifications
| Model number | LED module number | Voltage | Current | Certificate | Weight | Color |
|---|---|---|---|---|---|---|
| QLV-1250 | 24EA | DC12V | 11A | | 16.51kg |   Blue-Red Red-Red Amber-Amber Green-Green |
| QLV-1150 | 22EA | 10.5A | - | 15.62kg | ||
| QLV-885 | 18EA | 9.5A | - | 12.97kg |
