QLEX series
Copied to clipboard

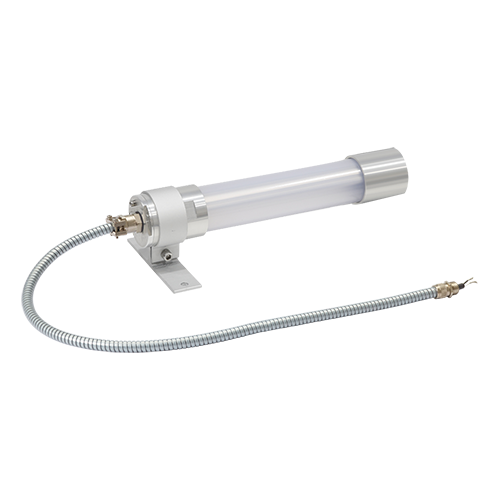

QLEX-SLM
- Voltage
DC:24V│AC:220V
- Dimension
105(W)×65(H)×250~650(L)
- Materials
Side cover : Al │Lens : PC │Bracket : Al
- Protection rating
IP66│IP67
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Explosion proof LED work light designed for use in explosive gas environments
with Ex d IIC rating
Enhanced durability with aluminum housing and polycarbonate lens tube
Slim and compact structure realize aesthetically pleasing design
Semi-permanent service life with long-lasting LED light source
Features special structure that allows to adjust light angle by turning the light tube
Cable Entry: M12xP1.5
- Certificates: CE, KCs, NEPSI, S-mark, ATEX, IECEx
- Protection rating :
ATEX - Ex II 2G Ex db IIC T6 GbIECEx - Ex db IIC T6 Gb
KCs - Ex d ⅡC T6(QLEX-SLM-250)
Ex d ⅡC T5/T6(QLEX-SLM-650)
NEPSI - Ex db IIC T6 Gb(QLEX-SLM-250) - Ambient operating temperature :
-40°C ≤ Tamb ≤ +60°C(QLEX-SLM-250)
-40°C ≤ Tamb ≤ +55°C(QLEX-SLM-650: T6)
-40°C ≤ Tamb ≤ +60°C(QLEX-SLM-650: T5)
Product Specifications
| Optics Specifications | |||||
|---|---|---|---|---|---|
| Model number | QLEX-SLM-250 | QLEX-SLM-650 | |||
| Directions | Translucent | ||||
| Light color | Cooldaylight | ||||
| Color temperature | 6,000-7,000K | ||||
| Luminous flux | DC | 650lm | 1,800lm | ||
| AC | 350lm | 1,580lm | |||
| Illumination(at 1m) | DC | 310Lux | 650Lux | ||
| AC | 240Lux | 530Lux | |||
| Specifications | |||||
| Model number | QLEX-SLM-250 | QLEX-SLM-650 | |||
| Rated voltage | DC24V | AC220V | DC24V | AC220V | |
| Range for operation voltage | DC21.6V-26.4V | AC198V-242V | DC21.6V-26.4V | AC198V-242V | |
| Power consumption | 8.6W | 9W | 20W | 23W | |
| Insulation resistance | Min. 100MΩ(500V DC mega ohm meter) | ||||
| Withstanding voltage | DC : 500VAC, 60Hz, 1minute / AC : 1,500VAC, 60Hz, 1minute | ||||
| Protection rating | IP66/67 | ||||
| Materials | Side cover : AI, Lens : PC, Bracket : AI | ||||
| Certificates | | |
| ||
| Weight(approx.) | 0.50kg | 0.93kg | |||
