QAT80L Series
Copied to clipboard
QAT80ML
- Voltage
DC:12V-24V
- Dimension
Diameter : Ø80 │Height : 277
- Materials
العدسات-PC │المبيت-PA66
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

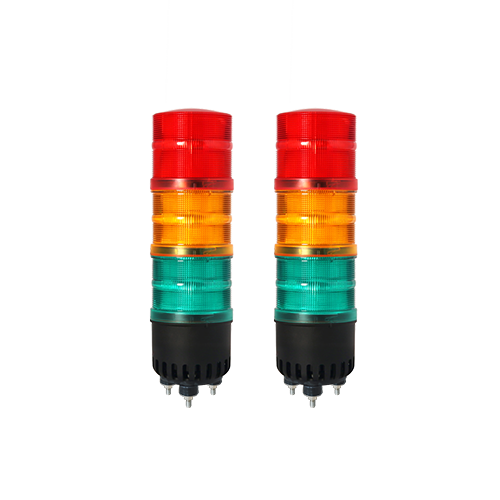

Product Feature- LED Steady/Flashing Tower Lights
- Long product lifetime of over 20,000 hours with the application of a high intensity multiple color LED light source
- Built in 2 tone buzzer, Sound output according to LED color(Max.95dB at 1m)
- Flashing rate : 60-80 flashes/min
- Materials : Lens-PC, Housing-PA66
- Protection rating : IP65
- Ambient operating temperature : -30°C ≤ Tamb ≤ + 50°C
- Compliant with RoHS directive
Product Specifications
| Model number | Layers | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QAT80ML Steady QAT80ML-BZ Steady w/ built-in buzzer QAT80MLF Steady/Flashing QAT80MLF-BZ Steady/Flashing w/ built-in buzzer | 3 | DC12V~24V | | 0.50Kg |  R-Red A-Amber G-Green |
| 0.62Kg | |||||
| 0.50Kg | |||||
| 0.62Kg |
※ CE Compliant: DC24V
Light source/buzzer current(based on 1 layer)
Voltage | DC12V-24V |
|---|---|
Light source current(1 layer) | Max.200mA |
| Buzzer current | Max.50mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi--- continue |
|
| 2 Buzzer Sounds | Pi-- Pi-- slow |
