QAP/ADH Series Copied to clipboard

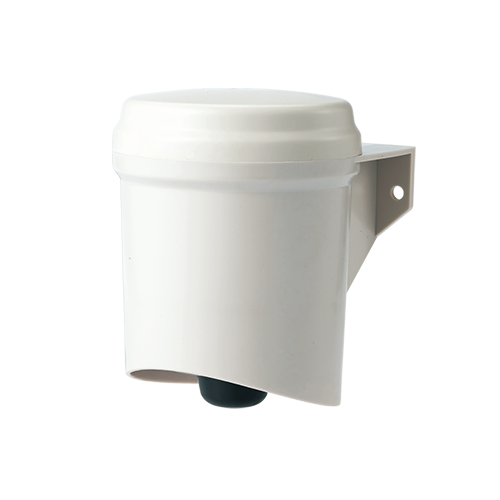

QAP125H
Max.115dB
- Product Feature
30 صوتًا مُدمجًا (Max. 115dB at 1m), 30 صوتًا محددًا بواسطة المُستخدم بتنسيق MP3 (Max. 100dB at 1m)
- Voltage
DC:12V-24V│AC:110V-220V
- Dimension
Diameter : Ø116mm │Height : 149 │Depth : 132
- Materials
ABS
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Signal sound diffusing structure with wall mount supports 30 Built-in sounds and 30 user defined sounds
- Volume control and tone selector switches are installed inside the unit
- User has the ability to enter voice tones directly into the unit via MP3 files from the SDcard
- This product has 30 Built-in sounds via binary input mode or bit input mode
- Binary input mode allows the user to select from 30 different sound options with the tone selection switch
- Bit input mode is organized into 6 groups of 5 sound tones for a total of 30 sound tone options. Playback can be selected from one of the 5 tones in each group (MP3 file with bit input mode)
- Supports both SDcard and MP3
- Materials : Housing-ABS, Resonance chamber-ABS
- Ambient operating temperature : -25°C to +50°C
- Protection rating : IP65
- Compliant with RoHS directive
Product Specifications
Model number | Voltage | Current | Built-in Sound and dB | Certificates | Weight |
---|---|---|---|---|---|
QAP125H | DC12V-24V | Max.1A | · Bit Input: 5Ch · Binary Input: 30Ch · Built-in volume: Max.115dB (Based on WA-Ch4) · MP3: Max.100dB | 0.70kg | |
AC110V-220V | Max.190mA | 0.73kg |
※ DC type model has a free-voltage range of 10V-30V.
※ AC type model has a free-voltage range of 100V-240V.
※ Please refer to [Sound tone and combination for standard product] on this catalogue for detailed sound tone specification
※ When playing MP3 files, there may be difference of volume depending on user’s audio file type.
Sound Tone Combination of Standard Product
Sound Category | Sound Tone | Channel | Sound |
---|---|---|---|
5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
5 Special Warning Sounds (2nd Group) | Rel rel rel Slow Ambulance PI-PO Wye yong Wye yong Phone ring 2 Fire.A-ANG |
||
5 Special Warning Sounds (3nd Group) | Oit Oit Pi o Pi o Slow Di o Di o Li long Li ling 911 Siren |
