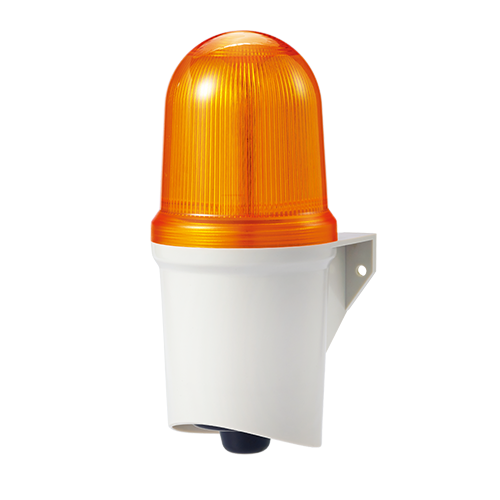

QAD100H

S60AD/QAD Series Copied to clipboard

QAD100H

Wall Mount Type
LED Steady/Flash & Electric Horn
Max.100dB
LED Steady/Flashing TypeIP65-30℃ ~ +50℃Horn100dBSD Card(MP3)95dBNPN-Transistor TypeRoHS
  • Product Feature

    30 صوتًا مُدمجًا (Max. 100dB at 1m), 30 صوتًا محددًا بواسطة المُستخدم بتنسيق MP3 (Max. 95dB at 1m)

  • Voltage

    DC:12V-24VAC:110V-220V

  • Dimension

    Lens Diameter : Ø100(Approx.) Height : 215 Depth : 109

  • Materials

    العدسات-PC المبيت-ABS

  • Protection rating

    IP65

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Combination of warning light and horn allow for both visual and audible signal transmission at once
  • Flashing rate : 60-80 flashes/min(Built-in Steady-Flash selection switch)
  • Appropriate sound tones can be chosen depending on the various working environment among various available sound tones
  • Sound tone selector and volume controller in front of the device allows for convenient use
  • SDcard type allows user defined sound tone
  • Built-in 30 sound tones, Support Binary and Bit input modes
  • Bit input mode consists of 5 sound types with 6 groups. Choose one of the groups to play 5 sounds.(MP3 does not support group)
  • MP3 support
  • Materials : Lens - PC, Housing - ABS
  • Ambient operating temperature : -30°C to +50°C
  • Compliant with RoHS directive

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberVoltageCurrentSound Pattern and VolumeCertificatesWeightColor
QAD100HDC12V-24VMax.1A

· Bit Input: 5Ch

· Binary Input: 30Ch

· Built-in sounds: Max.100dB (Based on WA-Ch4)

· MP3: Max.95dB




0.92kg R-Red
A-Amber
 G-Green
 B-Blue
AC110V-AC220VMax.360mA
0.92kg

ㆍBuilt-in sound/MP3

※ DC type model has a free-voltage range of 12V-30V.

※ AC type model has a free-voltage range of 100V-240V.

※ When playing MP3 files, there may be difference of volume depending on user’s audio file type.

Sound Tone Combination of Standard Product

Sound Category Sound Tone Channel Sound
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
Ch1
Ch2
Ch3
Ch4
Ch5
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Abandon Alarm
Machunery Fault
High Expansion
7 Short PI. / 1 Long
Ch1
Ch2
Ch3
Ch4
Ch5
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
Ch1
Ch2
Ch3
Ch4
Ch5
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
Ch1
Ch2
Ch3
Ch4
Ch5
5 Special Warning Sounds (2nd Group)
Rel rel rel
Slow Ambulance PI-PO
Wye yong Wye yong
Phone ring 2
Fire.A-ANG
Ch1
Ch2
Ch3
Ch4
Ch5
5 Special Warning Sounds (3nd Group)
Oit Oit
Pi o Pi o
Slow Di o Di o
Li long Li ling
911 Siren
Ch1
Ch2
Ch3
Ch4
Ch5

  • Product Feature
  • Product Specifications
  • Download

Download

※ If the PDF file does not display properly, please use [Adobe Reader], the official PDF viewer.
