QA Series
Copied to clipboard

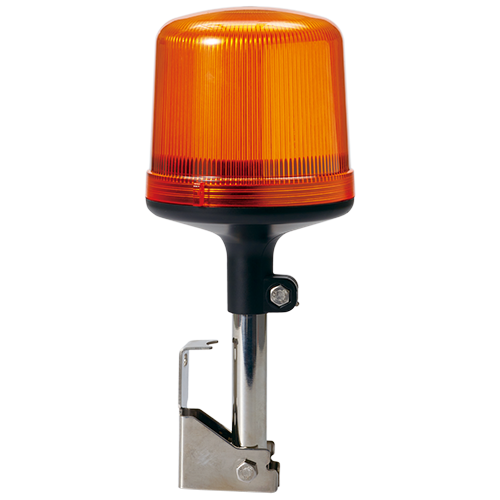

QA140HLSP
- Voltage
DC:12V,24V
- Dimension
Diameter : Ø140 │Height : 325
- Materials
Housing-PC │Diffusion lens-PC │Lens-PC │Reflector-Heat resistant ABS │Bracket-STS
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Applies a special built-in filter to compensate for shortcomings of the LED warning light when attenuation to sunlight in bright outdoor environments occur
- Wide angle filter provides excellent visibility from top to bottom
- Vibration resistant and shock-proof : Can withstand 15g of vibration and 50g of shock
- Pole mount type
- Equipped with angel-adjustable bracket
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
- Designed for heavy equipment applications
- Certificates : CE Compliant
- Compliant with RoHS directive
Product Specifications
| Model number | Brightness | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| QA140HLSP | 110Lux | DC12V | 820mA | | 1.16kg |  R-Red A-Amber |
| DC24V | 670mA |
※ CE compliant: DC24V
