QA Series
Copied to clipboard

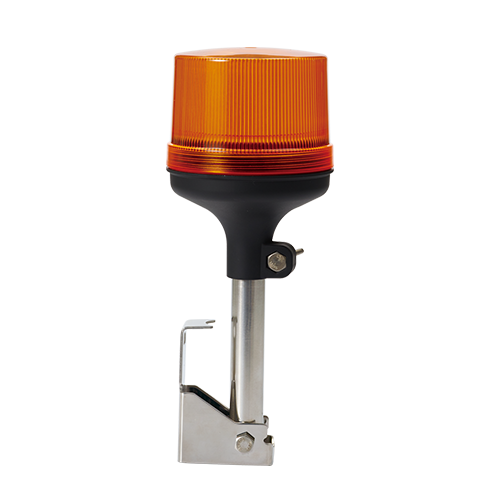

QA115HLSP
- Voltage
DC:12V-24V
- Dimension
Housing Diameter : Ø117 │Height : 291
- Materials
العدسات-PC │المبيت-PC
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ability to compensate for signal attenuation phenomenon that occurs during daytime operation with a powerful xenon lamp
- pole mount type
- Materials : Lens-PC, Housing-PC
- Flashing rate : 60-80 flashes/min
- Pole mount type model consists of a shock-proof rubber body; this feature provides excellent durability to vibration and shock
- Ambient operation temperature : -30°C to +50°C
- Protection rating : IP66
- Vibration resistant and shock-proof : Can withstand 15g of vibration and 50g of shock
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QA115HLSP | DC12V-24V | Max.820mA | | 1.22kg |  R-Red A-Amber |
※ DC type model has a free-voltage range of 10V-30V.
