MR60
- Product Feature
LED Steady/Flashing Module
- Voltage
DC:24V
- Dimension
Ø60x57
- Materials
PC
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Steady/Flashing LED module for modular LED tower light
- Excellent visibility from a distance with the use of a special color diffusing lens
- Shift locking design realizes assembly and disassembly without additional tools
- Steady/Flashing mode can be selected by using dip switch inside of the LED module
- Flashing rate : 60~80/min
- Ambient operating temperature : -30℃ ~ +50℃
- Compliant with RoHS directive
Product Specifications
| Model number | Color | Voltage | Current | Dimension | Material | Certificates |
|---|---|---|---|---|---|---|

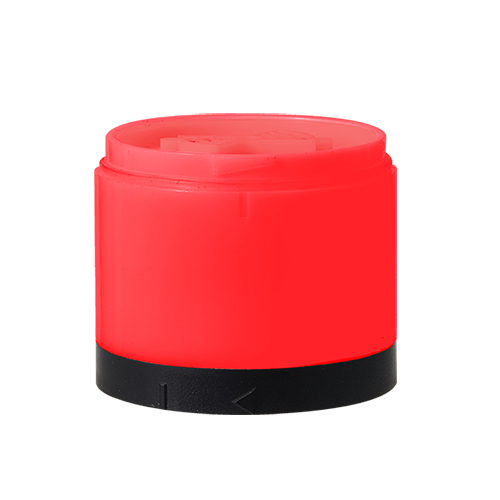

| MR60-R-24 |  R-Red | DC24V | 70mA | Ø60x57 | PC | |

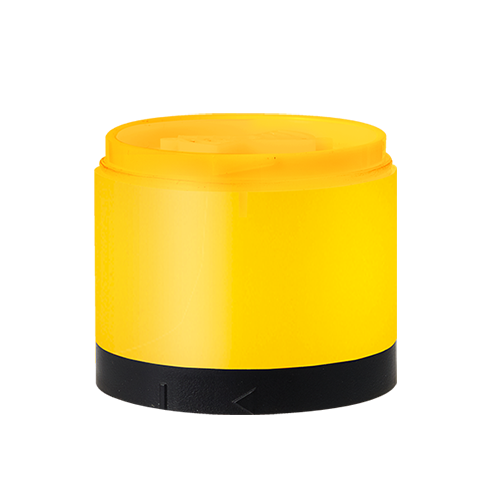

| MR60-A-24 |  A-Amber | DC24V | 70mA | |||

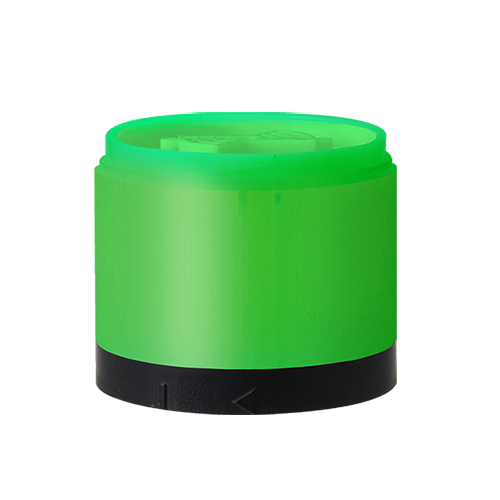

| MR60-G-24 |  G-Green | DC24V | 70mA | |||

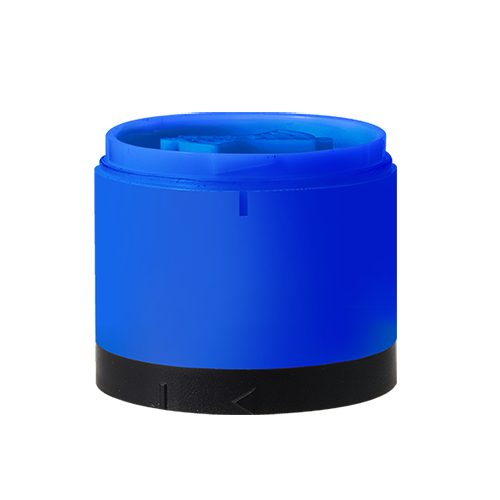

| MR60-B-24 |  B-Blue | DC24V | 70mA | |||

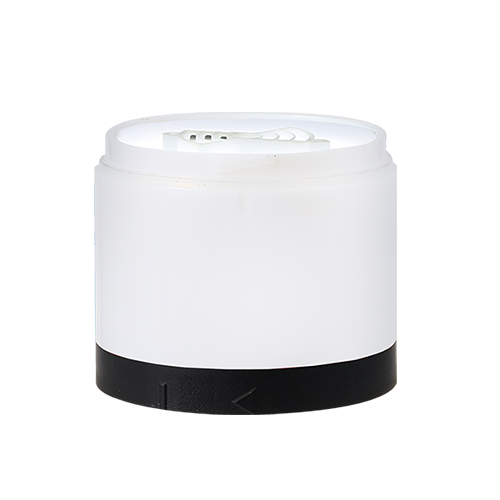

| MR60-W-24 |  W-White | DC24V | 70mA |
