MG70-MBS-DC
MG70-MBS-DC
MG70-MBS-DC

وحدة القاعدة Copied to clipboard

MG70-MBS-DC

Ø70mm modular LED tower light
Self stand base module(MTG/MTC/MTR)
  • Product Feature

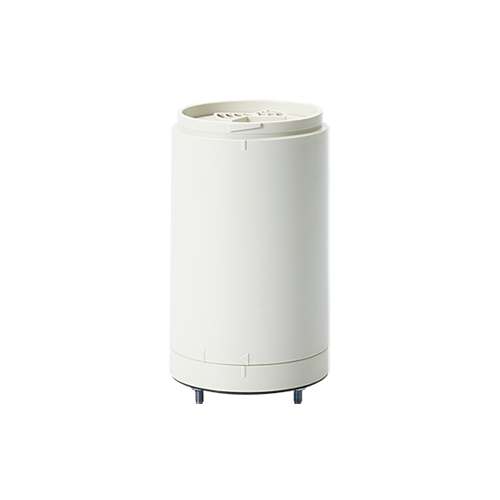

    Self stand base module

  • Voltage

    DC:24V

  • Dimension

    Ø70x120

  • Materials

    ABS

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Base module for modular LED tower light
  • Ivory/Silver/Black options are available in accordance with customers' preference
  • Shift locking design realizes assembly and disassembly without additional tools
  • Push buttons on the terminal helps you to realizes easy wiring
  • Ambient operating temperature : -30℃ ~ +50℃
  • Compliant with RoHS directive
Video

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberColorVoltageCurrentDimension
MaterialWeight
Certificates
MG70-MBS-DCIvoryDC24V400mA
Ø70x120ABS0.17kg


MG70-MBS-DC-SVSilver
MG70-MBS-DC-BKBlack

※ UL listed silver housing model is optionally provided
