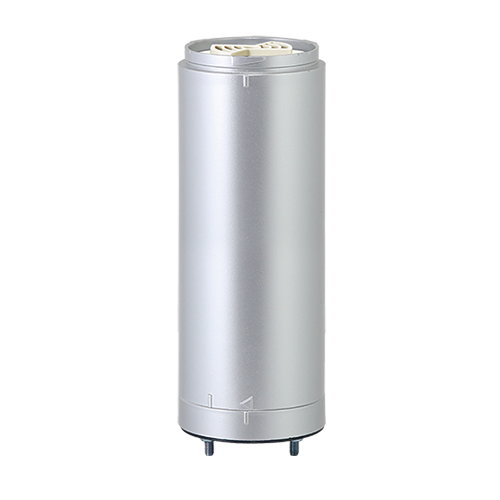

MG60-MBS-AC
Self stand base module(MTG/MTC/MTR)
- Product Feature
Self stand base module
- Voltage
AC:110V-220V
- Dimension
Ø60x160
- Materials
ABS
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Base module for modular LED tower light
- Ivory/Silver/Black options are available in accordance with customers' preference
- Shift locking design realizes assembly and disassembly without additional tools
- Push buttons on the terminal helps you to realizes easy wiring
- Material: ABS
- Ambient operating temperature : -30℃ ~ +50℃
- Certificates: CE, UL
- Compliant with RoHS directive
Product Specifications
| Model number | Color | Voltage | Current | Dimension | Material | Weight | Certificates |
|---|---|---|---|---|---|---|---|
| MG60-MBS-AC | Ivory | AC110-220V | Max.250mA | Ø60x160 | ABS | 0.25kg | |
| MG60-MBS-AC-SV | Silver | ||||||
| MG60-MBS-AC-BK | Black |
※ UL listed silver housing model is optionally provided
