وحدة القاعدة
Copied to clipboard
MG60-BS-DC
- Product Feature
Pole type base module
- Voltage
DC:24V
- Dimension
Ø60x140
- Materials
ABS
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Base module for modular LED tower light

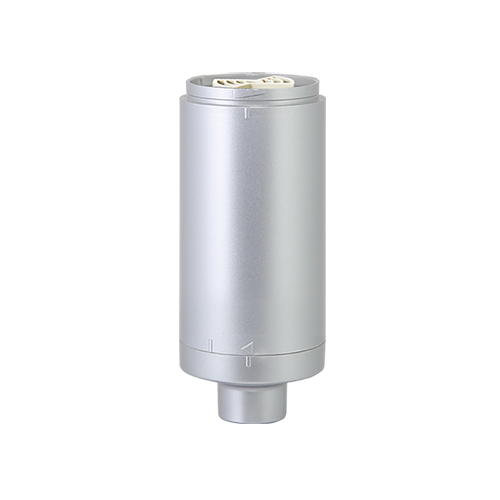

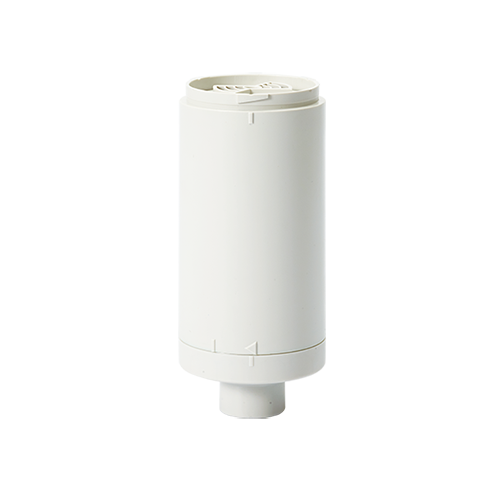

- Ivory/Silver/Black options are available in accordance with customers' preference
- Shift locking design realizes assembly and disassembly without additional tools
- Push buttons on the terminal helps you to realizes easy wiring
- Ambient operating temperature : -30℃ ~ +50℃
- Compliant with RoHS directive
Product Specifications
| Model number | Color | Voltage | Current | Dimension | Materials | Weight | Certificates |
|---|---|---|---|---|---|---|---|
| MG60-BS-DC | Ivory | DC24V | 400mA | Ø60x140 | ABS | 0.14kg | |
| MG60-BS-DC-SV | Silver | ||||||
| MG60-BS-DC-BK | Black |
※ UL listed silver housing model is optionally provided
