MG50-WBZ
MG50-WBZ
MG50-WBZ

وحدة الجرس Copied to clipboard

MG50-WBZ

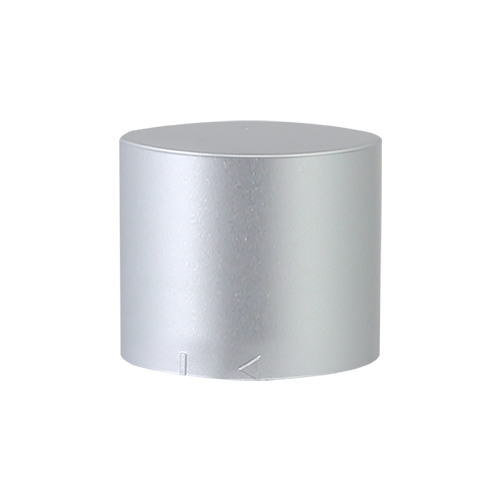

Waterproof buzzer module for Ø50mm modular LED tower light(MTG/MTC/MTR) Max.85dB
  • Product Feature

    Waterproof Buzzer module

  • Voltage

    DC:24V

  • Dimension

    Ø50x50

  • Materials

    ABS

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Waterproof buzzer module for modular LED tower light
  • Ivory/Silver/Black options are available in accordance with customers' preference
  • Shift locking design realizes assembly and disassembly without additional tools
  • Sealed design with waterproof buzzer
  • Built-in Volume control switch
  • Ambient operating temperature : -30℃ ~ +50℃
  • Compliant with RoHS directive
Video

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberColorVoltageCurrentDimensionMaterialVolume(dB)WeighCertificates
MG50-WBZ-24IvoryDC24V0.090AØ50x50ABSMax.85dB
0.05kg


MG50-WBZ-24-SVSilverDC24V0.090A
MG50-WBZ-24-BKBlackDC24V0.090A

※ UL listed silver housing model is optionally provided
