MG50-BS-DC
- Product Feature
Pole type base module
- Voltage
DC:24V
- Dimension
Ø50x86
- Materials
ABS
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Base module for modular LED tower light
- Ivory/Silver/Black options are available in accordance with customers' preference
- Shift locking design realizes assembly and disassembly without additional tools
- Push buttons on the terminal helps you to realizes easy wiring
- Ambient operating temperature : -30℃ ~ +50℃
- Compliant with RoHS directive
Product Specifications
| Model number | Color | Voltage | Current | Dimension | Material | Weight | Certificates |
|---|---|---|---|---|---|---|---|

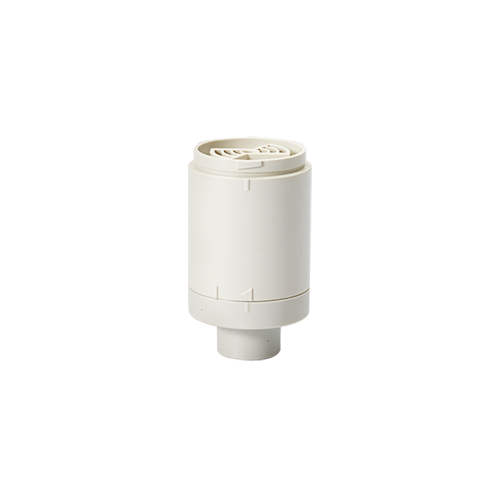

| MG50-BS-DC | Ivory | DC24V | 400mA | Ø50x86 | ABS | 0.07kg | |

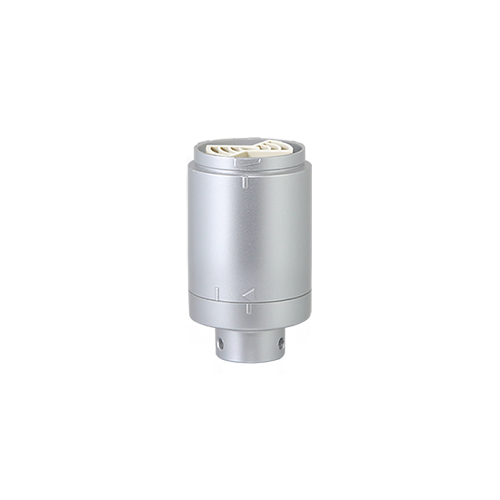

| MG50-BS-DC-SV | Silver | ||||||

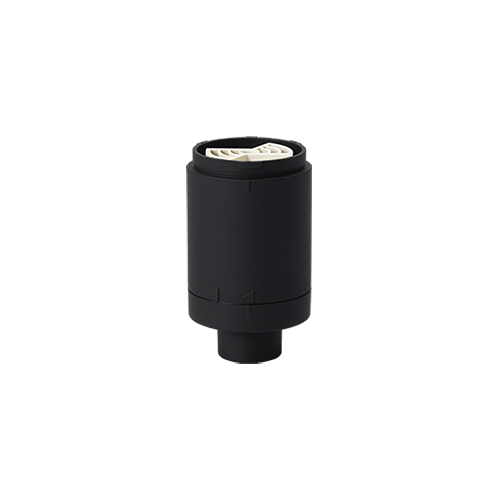

| MG50-BS-DC-BK | Black |
※ UL listed silver housing model is optionally provided
