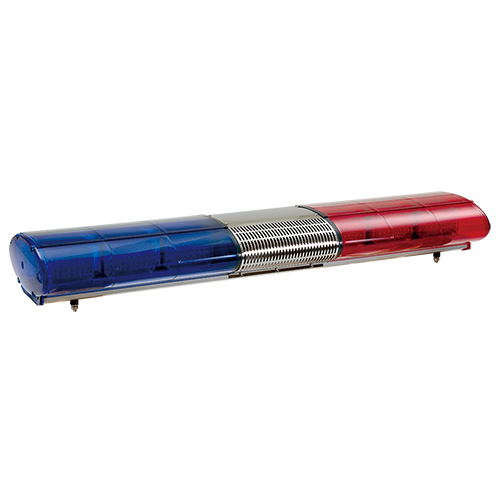

EL Series
Copied to clipboard
ELML
Max.126dB
- Product Feature
صوتًا مُدمجًا (Max.126dB at 1m)
- Voltage
DC:12V,24V
- Dimension
Ø280×136 │Height : 161 │Length : 588-1708
- Materials
Lens-PC, │Speaker Cover-STS │Reflector-Heat resistant ABS │Board-Al
- Protection rating
IP56
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Adjustable size depending on the type of vehicle and application needs
- Suitable for tow trucks, patrol cars and parking lots
- Designed in a structure which allows for quick assembly and disassembly for convenient light source replacement
- Adopts LED strobe system that emits flashing light for excellent visibility
- Enhanced outdoor visibility with use of independent LED diffusion lenses coupled with the LED backlighting system
- Flashing rate : 60-80 flashes/min
- Standard color arrangements :
Blue-Red Red-Red
Amber-Amber - Customized color arrangements available
- Modular design allows user defined color arrangement if necessary
- Ambient operating temperature : -25℃ to +50℃
Product Specifications
| Model number | LED module number | Voltage | Current (Based on 3 layers) | Certificate | Weight (Based on 3 layers) | Color |
|---|---|---|---|---|---|---|
| ELML-1 | 4EA | DC12V | 1.6A | - | 11.02Kg | B-R R-R A-A |
| DC24V | 1.2A | |||||
| ELML-2 | 8EA | DC12V | 2.4A | |||
| DC24V | 1.65A | |||||
| ELML-3 | 12EA | DC12V | 3.5A | |||
| DC24V | 3A | |||||
| ELML-4 | 16EA | DC12V | 5.1A | |||
| DC24V | 4.2A | |||||
| ELML-5 | 20EA | DC12V | 5.8A | |||
| DC24V | 4.7A |
