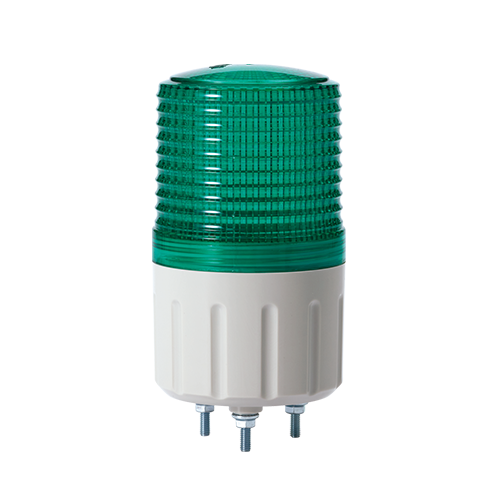

S60L
LED Steady/Flashing Signal Light
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø60(Approx.) │Height : 121
- Materials
Lens-AS │Housing-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø60mm compact warning/ signal light
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABC
- Ambient operating temperature : -20°C to +50°C
- Flashing rate : 60-80 flashes/mim
- Protection rating : IP44
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S60L | DC12V-DC24V | Max.120mA | - | 0.15kg |  R-Red A-Amber G-Green B-Blue |
| AC110V | 45mA | 0.20kg | |||
| AC220V | 20mA | 0.20kg |
ㆍFlashing rate: 60-80 flashes/min
※ DC type model has a free-voltage range of 10V-30V
