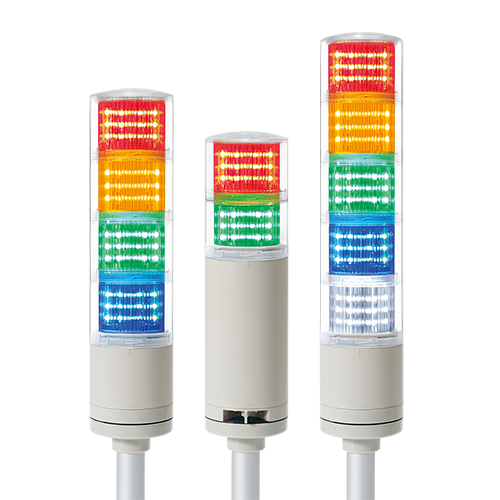

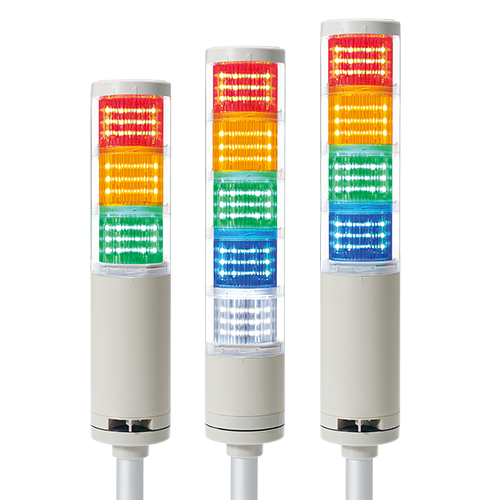

QTC70L/QTCA70L
LED Steady/Flashing Tower Lights
Max.85dB
- Product Feature
Buzzer volume controllable type (Max. 85dB at 1m) : optionally available
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
Diameter : Ø70mm │Height : │274-557
- Materials
Lens-PC │Inner Lens-PC │Housing-ABS │Pole-Al
- Protection rating
IP65 (Standard)│IP54 (Buzzer type)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Modular LED steady/flashing signal tower lights
- Added a separate color filter lens inside the outer lens to help provide a clear signal
- The addition of modules and change in color arrangement can be achieved without the use of tools by using the Lock-type structure
- QTCA type offers a nifty integrated lens and cover for a simple aesthetically pleasing product
- When it is turned off the milky color filter provides comfortable viewing at close proximity for the operator
- A variety of mounting bracket selections for the pole mount type to fit your location and mounting needs
- Built-in buzzer available : Volume of Max. 85dB at 1m
- Available in customized 2 sound buzzer type and high volume(100dB) buzzer type
- Can be used with NPN open collector transistor driven input, which allows direct connection to a PLC
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
- Protection rating : Standard type-IP65, Built-in buzzer type-IP54
- Pre-wired is standard. Can customize the product with the M12 connector if requested
- 24VDC UL listed model is optionally provided
- Certificates : CE Compliant, UL Listed
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QTC70L Steady QTC70L-BZ Steady /w built-in buzzer QTC70LF Steady/Flashing QTC70LF-BZ Steady/Flashing /w built-in buzzer QTCA70L Steady QTCA70L-BZ Steady /w built-in buzzer QTCA70LF Steady/Flashing QTCA70LF-BZ Steady/Flashing /w built-in buzzer | 1 | DC12V DC24V AC110V-220V | | 0.56kg 0.56kg 0.66kg |  R-Red |
| 2 | DC12V DC24V AC110V-220V | 0.68kg 0.68kg 0.78kg | R-Red G-Green | ||
| 3 | DC12V DC24V AC110V-220V | 0.83kg 0.83kg 0.92kg | R-Red A-Amber G-Green | ||
| 4 | DC12V DC24V AC110V-220V | 0.98kg 0.98kg 1.08kg | R-Red A-Amber G-Green B-Blue | ||
| 5 | DC12V DC24V AC110V-220V | 1.22kg 1.22kg 1.31kg | R-Red A-Amber G-Green B-Blue W-White |
※ AC type model has a free-voltage range of 100V-240V
※ UL Listed: DC24V
Light source/buzzer current(based on 1 layer)
Voltage | DC12V | DC24V | AC110V~220V |
|---|---|---|---|
Light source current(1 layer) | 105mA | 70mA | Max.60mA |
| Buzzer current | 40mA | 75mA | Max.55mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
|
| 2 Buzzer Sounds (Customized type) |
Pi--- Pi--- moderate Pi pi pi short |
|
| Pi- buzzer continue (Customized type) |
Pi--- continue |
